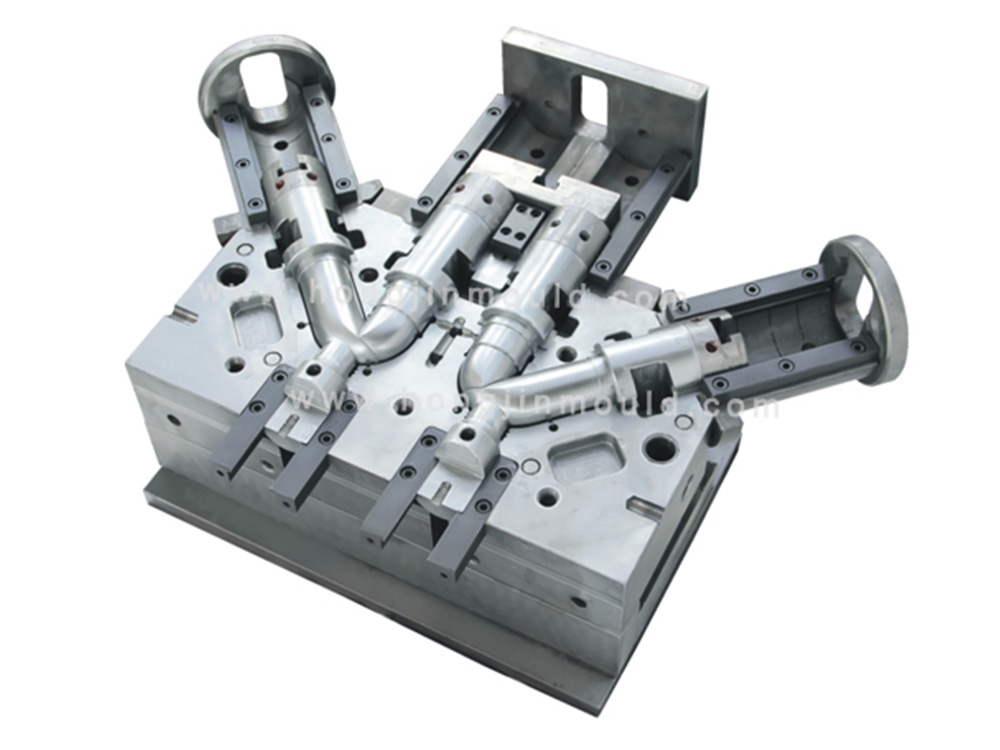

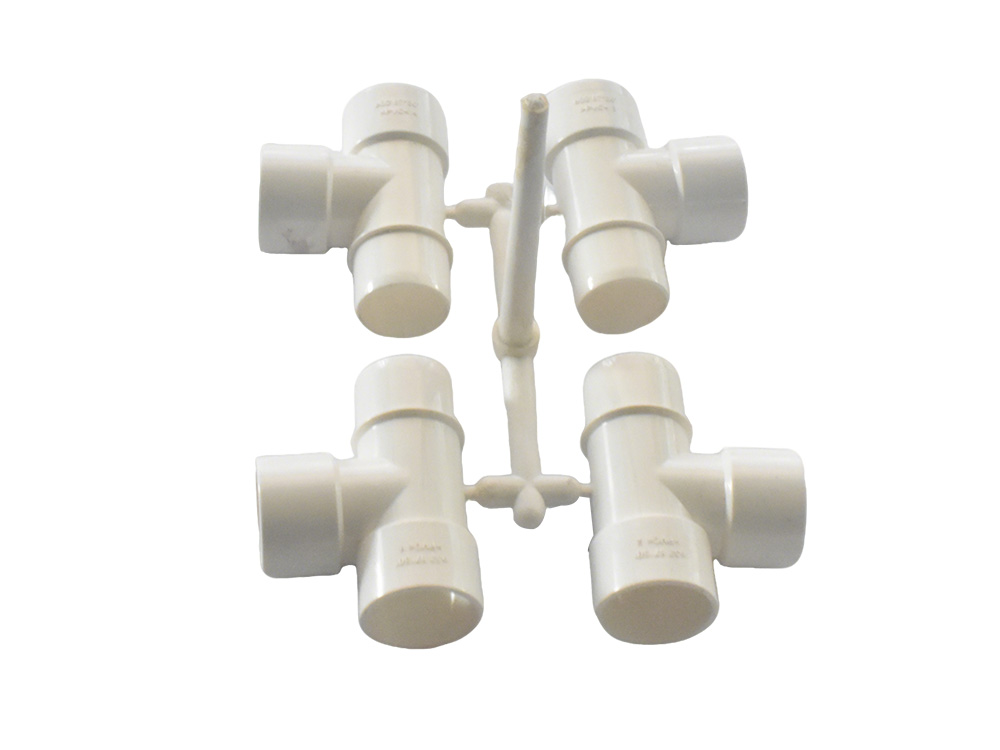

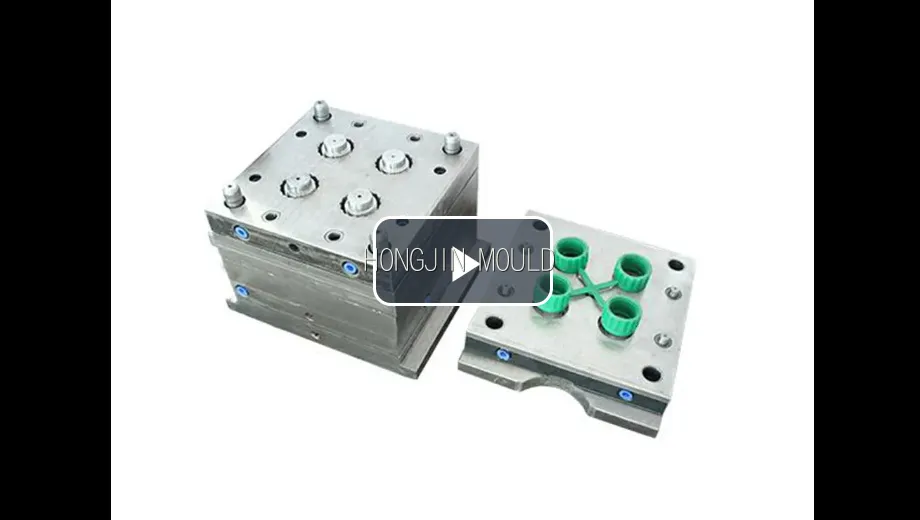

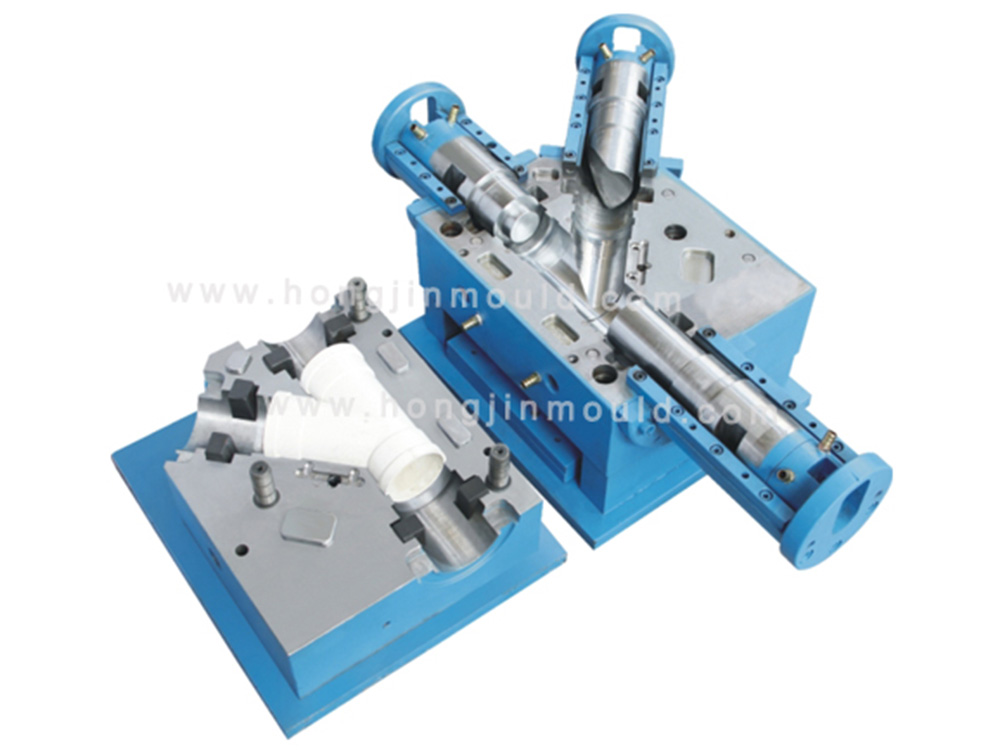

Three-Way Pipe Fitting Mold: Design, Functionality, and Applications A three-way pipe fitting mold is a specialized tool used in the manufacturing of pipe fittings that branch or redirect fluid flow in piping systems. These molds are critical for producing high-quality T-shaped or Y-shaped fittings, which are widely used in plumbing, irrigation, chemical processing, and HVAC systems. The design and precision of the mold directly influence the durability, leak resistance, and performance of the final product. 1. Mold Design and Construction The mold is typically made from high-grade steel or aluminum to withstand high pressure and temperature during the injection molding or casting process. It consists of multiple components: - Core and Cavity: These form the internal and external shapes of the fitting, ensuring accurate dimensions. - Cooling Channels: Integrated to regulate temperature and reduce cycle times. - Ejection System: Facilitates the removal of the finished fitting without damage. - Venting: Prevents air traps that could cause defects like bubbles or incomplete fills. Precision machining ensures smooth surfaces and tight tolerances, minimizing post-processing. 2. Manufacturing Process The mold is used in processes such as: - Injection Molding: Molten plastic or composite material is injected into the mold cavity. - Die Casting: For metal fittings, molten metal is forced into the mold under high pressure. - Blow Molding: Used for hollow plastic fittings. Each method requires careful control of parameters like temperature, pressure, and cooling rates to ensure consistency. 3. Key Features of the Mold - Durability: Hardened steel molds can endure thousands of cycles. - Interchangeability: Modular designs allow for quick changes in fitting sizes or angles. - Corrosion Resistance: Coatings or stainless steel materials prevent degradation. 4. Applications of Three-Way Fittings Fittings produced from these molds are used in: - Plumbing: Connecting pipes at 90° or 45° angles. - Industrial Systems: Distributing fluids in chemical or oil pipelines. - Agriculture: Irrigation systems requiring branching lines. 5. Quality Control Molds must undergo rigorous testing to ensure dimensional accuracy and structural integrity. Advanced techniques like CNC machining and 3D scanning verify precision before mass production. Conclusion A well-designed three-way pipe fitting mold is essential for producing reliable, leak-proof fittings that meet industry standards. Its efficiency and precision directly impact the cost-effectiveness and performance of piping systems across various sectors. Continuous advancements in mold technology further enhance production speed and product quality.
