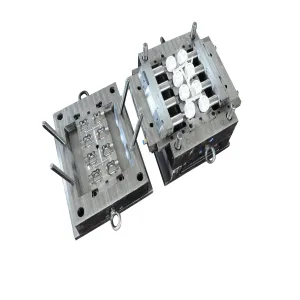

UPVC Ball Valve Pipe Fittings Mould

Mould name: UPVC Ball Valve Pipe Fittings Mould

Cavity:  4 cavities

Mould size:50mm

Mould steel:2316 for the cavity and core

Gate :direct gate

mould structure:Anple  pin

Hardness of core/cavity: HRC 40-45°after vaccum heat treatment

Injection moulding machine: 320T

Taizhou Huangyan Hong Jin mould Co., Ltd was established in 2002.We are professional in design and manufacture the Pipe Fitting Mould for more than 23  years.

We are looking forward to long cooperation with you.

About the pipe fiting mould Processing :Order → drawing → mold design → mould steel preparation → inspection →fly cutting mold frame →cnc mold frame →rough CNC machining of mold cavity→ drill the water line→ (quenching) → precise CNC machining of mold cavity → mechanical processing (mold parts processing and so on.) → inspection → assembly → inspection → mold test →inspection → etching/polishing → (nitriding/electroplating) → mold test → inspection → delivery

1.FAQ

Q: 1 Are you trading company or manufacturer ?

A: We are mould making pipe fitting mould..

Q:How do you Packaging the mould Details

A:We make pachaging the mould by Wooden cases

Q:Which Port is near your place

A:We are near NINGBO or shanghai
